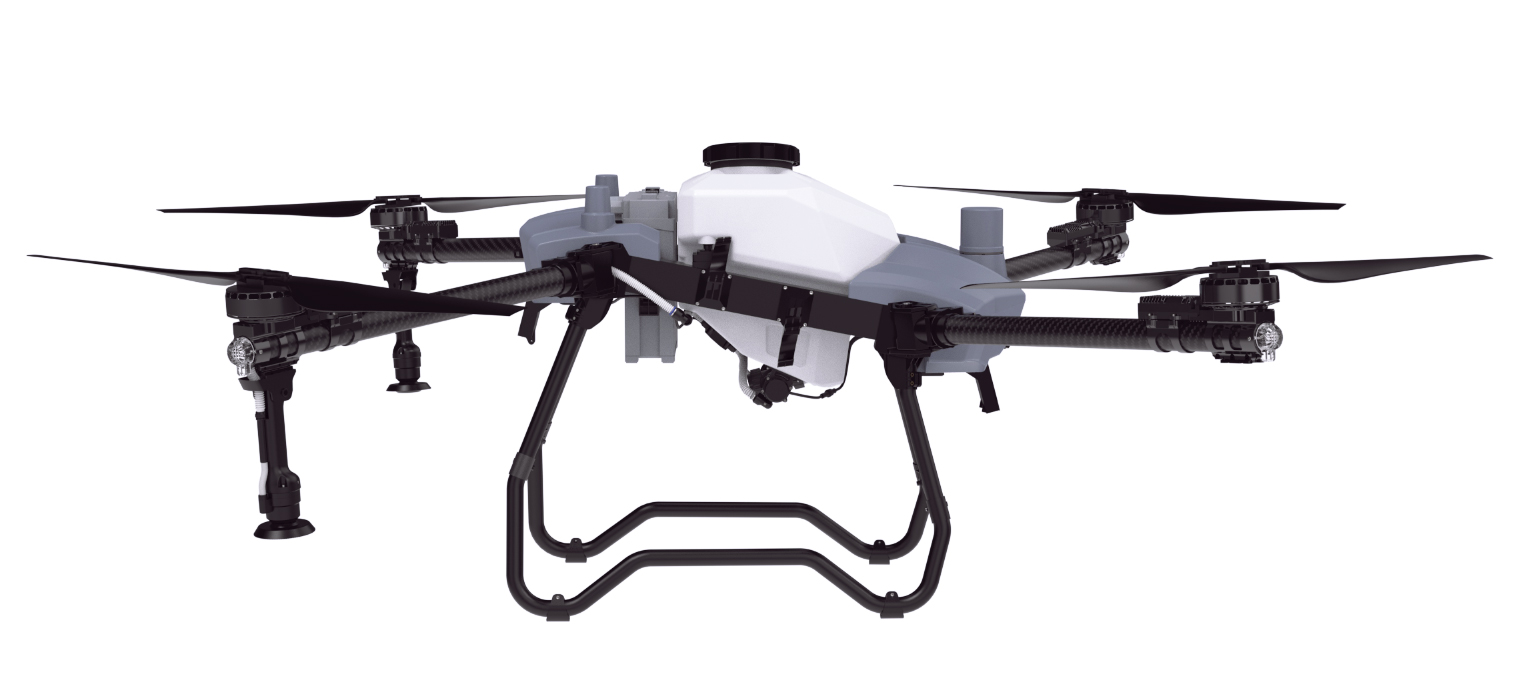

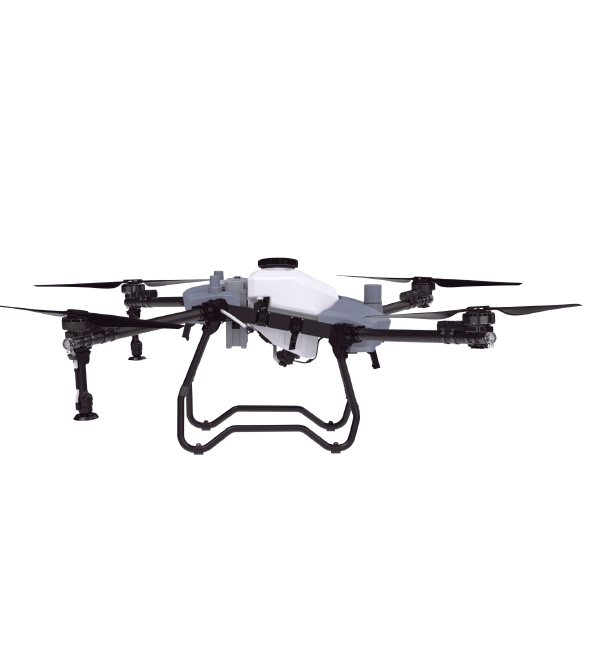

IMCX X-30
30 Liter
Agricultural
Drone
Complete Solution for all Farmers. IMCX-30 is like a helpful friend for all farmers. It's an advanced drone that makes farming easier. It's designed to work for both big and small farms, making farming better and more efficient.
Tank Capacity of 30 Liters ● Upto 21 minutes of flight time ● Spray upto 30Acre per charge ● Fast charging within 25 minutes ● Autonomous spraying by map selection
Capacity
Empty weight : 29.8kg (without batteries)
Empty weight : 40kg (including battery)
Empty spreader weight : 30.5kg (without batteries)
Empty spreader weight : 40.7kg (with batteries)
maximum take-off weight : 70kg
wheelbase : 2025mm
Expand Size Spraying：2435*2541*752mm
Expand Size Spreading：2435*2541*774mm

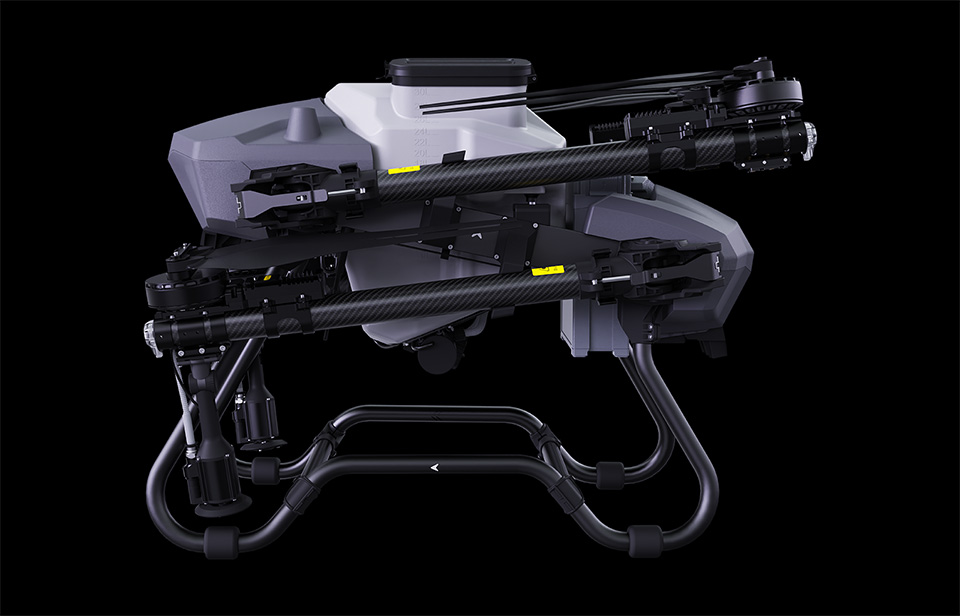

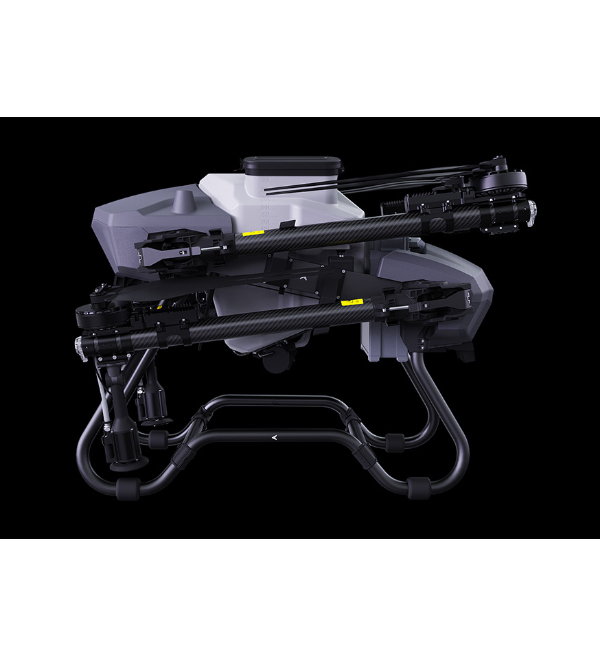

Folded size Spraying：979*684*752mm
Spreading：979*684*774mm
No-load hovering time 17.5min（14S 30000mah Battery）
Full load hovering time 7.5min （14S 30000mah Battery）
Working temperature 0-40℃
Spraying system
Tank capacity 30L
Pump parameters Voltage: 12-18S Power: 30W Maximum flow: 8L/min*2
Nozzle parameters
Voltage: 12-18S Power: 500W Atomized particle size: 50-500μm
Effective spray width 4-8m
Spreading system
Tank capacity 50L
Maximum load 30kg
Applicable materials 0.5-6mmdry solids
Effective broadcast width 8-12m
Recommended battery
Voltage 14S
capacity 30000mah
weight 10kg
here for PRODUCT DATASHEET- Categories :
- Drones
- Agriculture
- Spraying
Autonomous Spraying by Map Selection

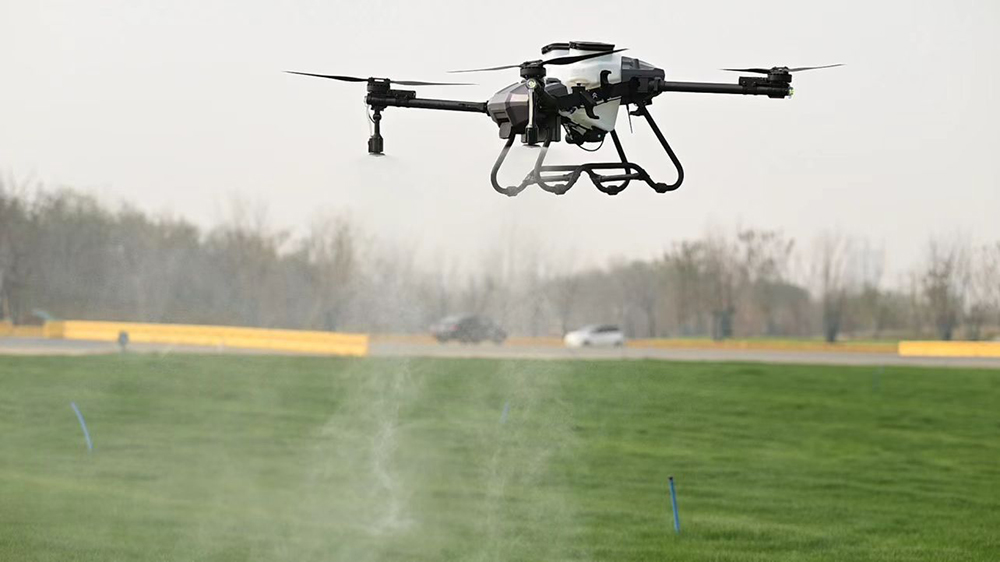

IMCX-30, has an autonomous mode in which the pilot can mark the part of the spray on the GCS and spray is done automatically according to the described path.
Spray Upto 30 Acres per charge
IMCX-30 has Li-Po batteries, capable of spraying 30 acres of land in 1 cycle of charge.
Tank Capacity
IMCX-30 Tank Capacity of 30 Litres
